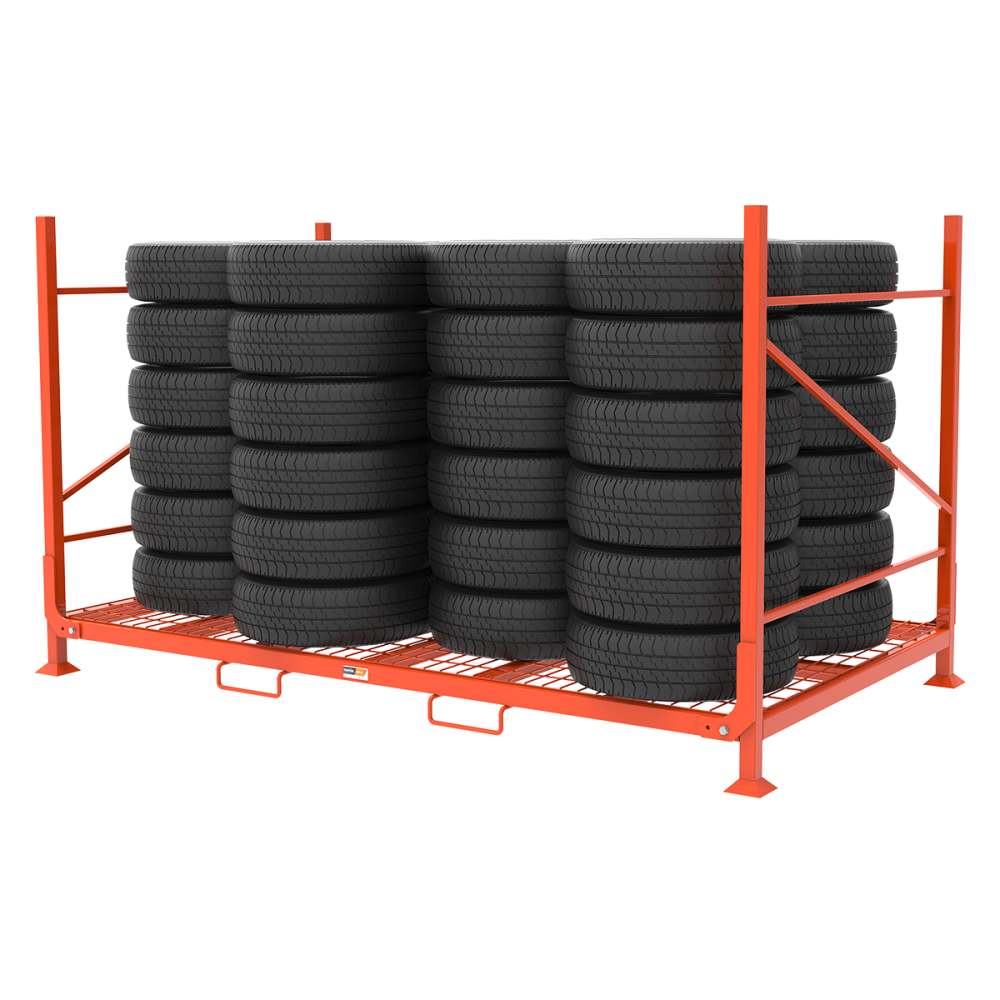

Pallet for passenger, bus & truck tyres with wire mesh decking
Features and benefits
- Designed for versatile storage of passenger, bus and truck tyres.
- Store 48 interlaced passenger tyres or 8 truck tyres. Load capacity of 350 kg.
- Stack 6 pallets when loaded, 20 when empty and folded.
- Powder-coated, UV-resistant paint in the colour of your choice – Will never lose its lustre.
- Compatible with several models of tyre storage pallets from competitor brands.
The Pallet for passenger, bus & truck tyres with wire mesh decking is made for versatility. Interlaced or barrel stacked, the heavy-duty steel wire mesh that serves as its base not only allows for both storage methods, but also allows to meet safety requirements. At capacity, it can store 48 passenger tyres or 8 truck tyres of up to 109 cm OD. Robotically welded, you can trust that this rack is both solid and built to last. Its fork guides will enable proper picking with the forklift. When empty, simply fold the two sides and stack up to 20 MER-508 to save space.
Specifications
| Specifications | |
|---|---|
| Features | Mobile, Stackable, Foldable/removable sides |
| Tire type | Passenger car & SUV tires, Truck & bus tires |
| Tire storage method | On the Tread, Laced |
| Tire capacity | 48 |
| Overall tire diameter - max. (cm) | 109 |
| Load capacity (kg) | 770 |
| Stackable - max. quantity (open) | 6 |
| Stackable - max. quantity (closed) | 20 |
| Net weight (kg) | 74 |
| Product dimensions - LxWxH (cm) | 231 x 130 x 130 |
| Materials | Steel |
| Finish | Powder coated paint |
| Warranty | 1 year warranty |
| Colour | Blue |
Documents
FAQ
-
Is the load capacity per unit or for the total stacked units?
The load capacity is per unit. Each unit can support its own load capacity plus the weight and load capacity of the stacked racks above. Example: You can stack 5 units all containing 1 100 kg (2 400 lb) each for a total of 5 500 kg (12 000 lb) in a vertical stack.
