92’’ x 40’’ Truck tire stacking rack

tirestow
# MTBR-HD

Features and benefits

  • Economical tire storage solution to start up a large warehousing project.
  • Store up to 14 TBR tires per rack. Load capacity of 2400 lb.
  • Stack 4 racks when loaded, 20 when empty and posts are removed.
  • Powder-coated, UV-resistant paint – Will never lose its luster.

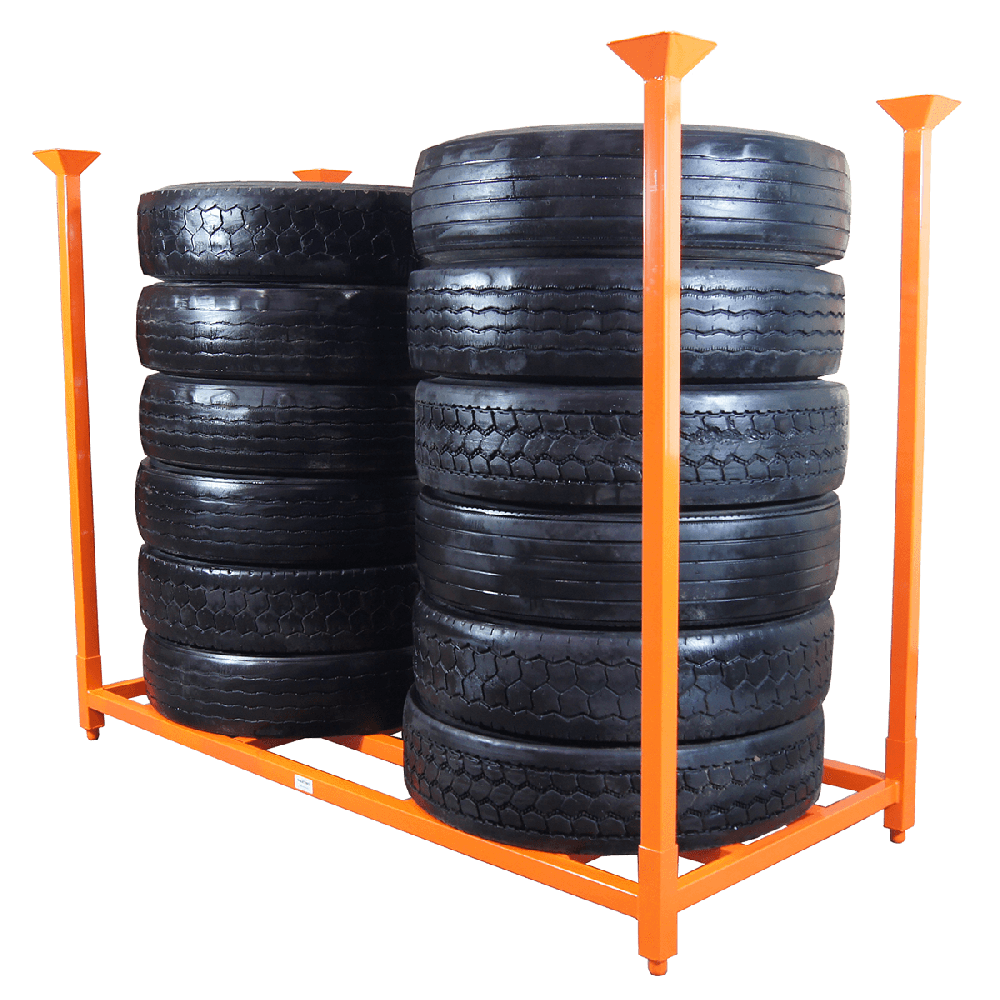

The 92" x 40" Truck Tire Stacking Rack is designed for barrel stacked storage of heavy truck, bus and farm machinery tires. It can accommodate 2 stacks of 7 tires of up to 44" OD. It is ideal for TBR tire manufacturers, distributors as well as for the government/public sector and commercial utility fleets. Robotically welded, you can trust that this rack is both solid and built to last. When empty, simply remove the posts and stack up to 20 MTBR-HD to save space.

Specifications

Specifications
Features Mobile, Stackable, Foldable/removable sides
Tire type Truck & bus tires, OTR tire
Tire storage method Barrel stacked
Tire capacity 12
Overall tire diameter - max. (inches) 44
Load capacity (lb) 2400
Stackable - max. quantity (open) 4
Stackable - max. quantity (closed) 20
Net weight (lb) 146
Product dimensions - LxWxH (inches) 92 x 40 x 72
Materials Steel
Finish Powder coated paint UV resistant - Never loses is luster
Warranty 1 year warranty
Color Orange

Documents

FAQ

  • Is the load capacity per unit or for the total stacked units?
    The load capacity is per unit. Each unit can support its own load capacity plus the weight and load capacity of the stacked racks above. Example: You can stack 5 units all containing 1 100 kg (2 400 lb) each for a total of 5 500 kg (12 000 lb) in a vertical stack.
