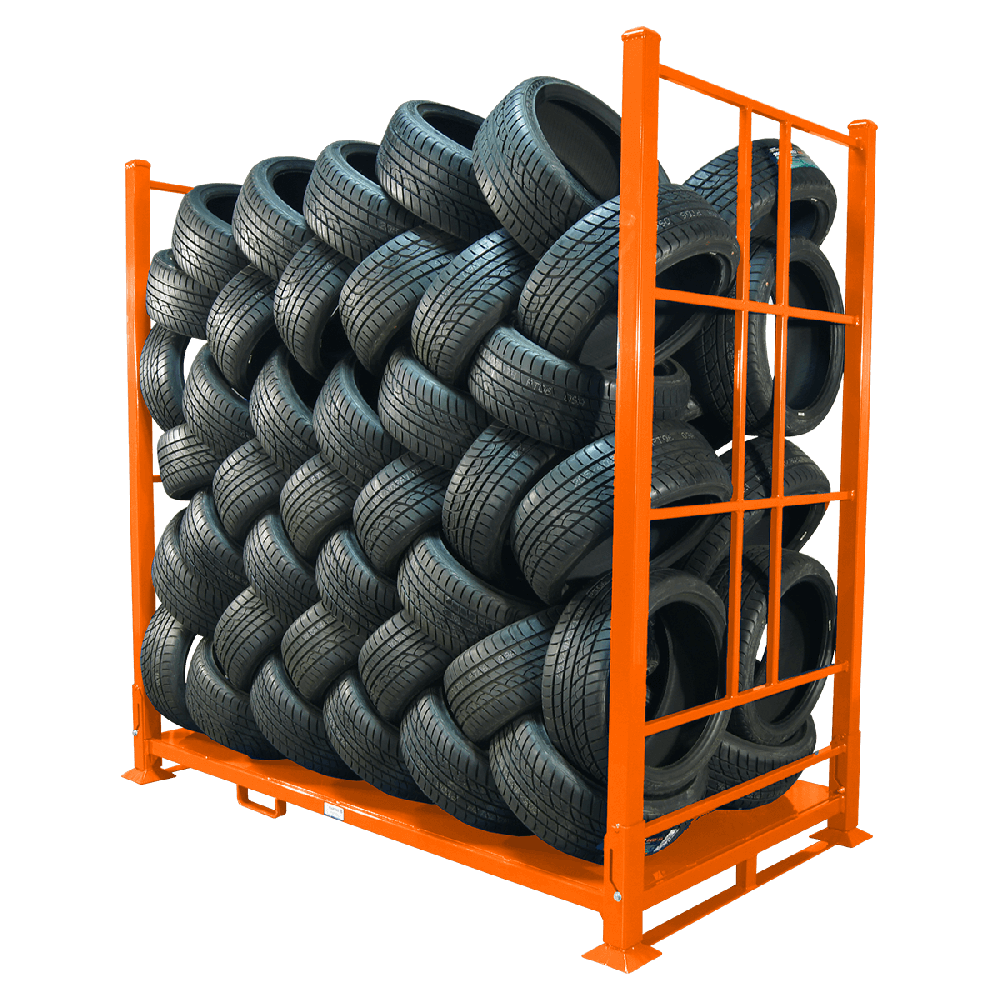

Barrel stack & lacing tire rack for PCR and TBR tires

Item Number MAR-02
1 year warranty learn more

Features and benefits

  • Specially designed to store large quantities of the same SKU of tires.
  • Store up to 100 passenger tires or 16 truck tires. Load capacity of 2200 lb.
  • Stack 4 racks when loaded, 20 when empty and folded.
  • Powder-coated, UV-resistant paint in the color of your choice – Will never lose its luster.

The Barrel Stack & Lacing Tire Rack can store passenger, SUV as well as truck tires. Interlace or barrel stacked, the heavy-duty steel plate that serves as its base allows for both storage methods. At capacity, it can store 16 truck tires or 54 barrel stacked to 100 interlaced passenger tires. Its fork guide will enable proper picking with the forklift. When empty, simply fold the two sides and stack up to 20 MAR-02 to save space.


Features Mobile, Stackable, Foldable/removable sides
Tire type Passenger car & SUV tires, Truck & bus tires
Tire storage method Laced, Barrel stacked
Tire capacity 100
Overall tire diameter - max. (inches) 42
Load capacity (lb) 2200
Stackable - max. quantity (open) 4
Stackable - max. quantity (closed) 20
Net weight (lb) 275
Product dimensions - LxWxH (inches) 91 x 50 x 86-3/4
Materials Steel
Finish Powder coated paint UV resistant - Never loses is luster
Warranty 1 year warranty
Color Blue



  • Is the load capacity per unit or for the total stacked units?
    The load capacity is per unit. Each unit can support its own load capacity plus the weight and load capacity of the stacked racks above. Example: You can stack 5 units all containing 1 100 kg (2 400 lb) each for a total of 5 500 kg (12 000 lb) in a vertical stack.
