- Safest way to inflate or deflate your tires. Protects from exploding large fragments and air blasts.
- Built with a laser-cut air deflection shield to protect against air blasts from exploding tires.
- Safety system on the door automatically activates & deactivates the inflation/deflation of tires.
- Inflate tires measuring up to 47" OD by 20" large.
- Certified to inflate tires up to 130 psi.

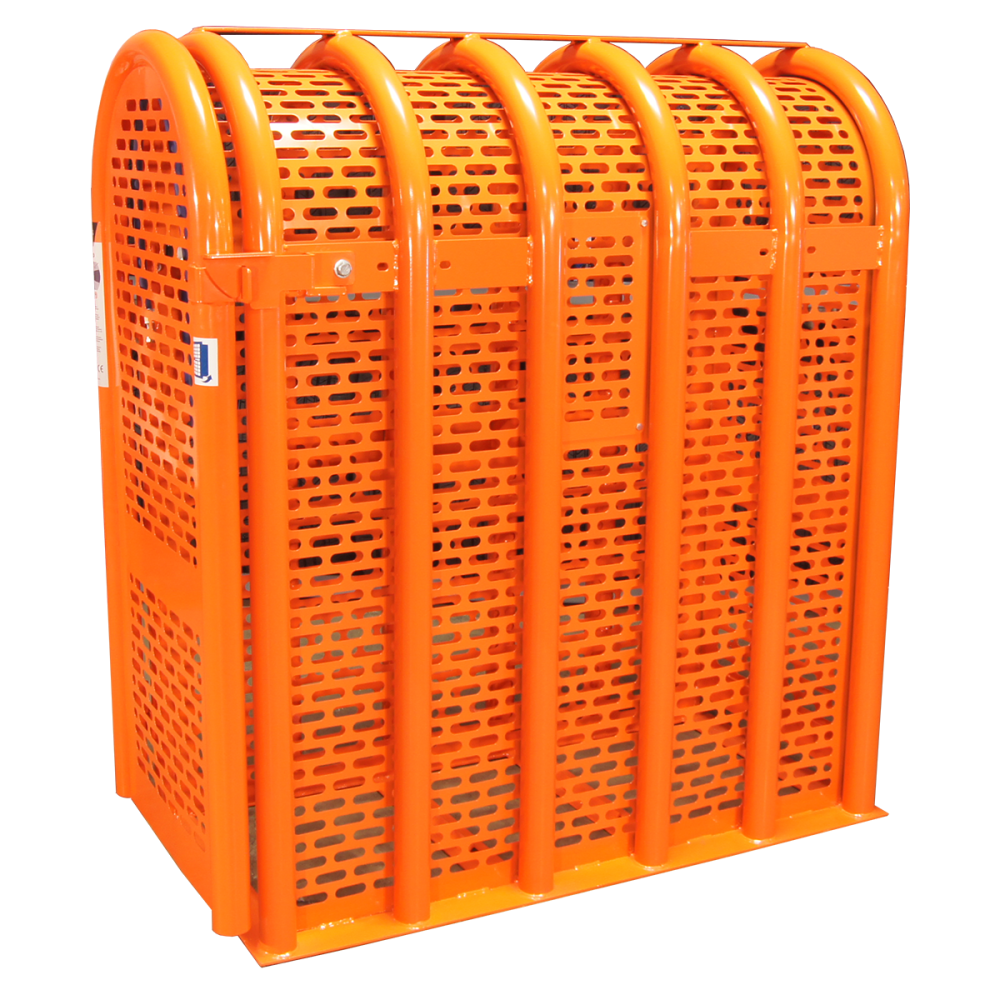

Using the 6-bar HD Tire inflation cage is the safest way for your employees to inflate your truck and bus, excavation or aircraft tires. Its solid structure exceeds the requirements of OSHA standard 29 CFR 1910.177 in the U.S. The cage is equipped with a robust lock on the door, an internal air hose with a lock-on chuck, a safety valve system and 4 anchor holes*. The 6-bar HD Tire inflation cage is also compatible with MARTINS’ Seating and inflating truck tire station (MIC-6HD-IPS) and the Tire inflating kit (MIC-6HD-KIT).
Before using the product, please read the instructions carefully.
*Air compressor required
*Regulations regarding cage anchoring differ per region, refer to your local authority.
|Meets OSHA Standard 29 CFR 1910.177
|Product dimensions - LxWxH (inches)
|53 x 27 x 57
|Truck & bus tires
|Overall tire diameter - max. (inches)
|Wheel width - max. (inches)
|Net weight (lb)
|Hose length (inches)
|Air compressor required
|1 year warranty
|Powder coated paint UV resistant - Never loses is luster
|Package dimensions - LxWxH (inches)
|55 x 30 x 58
Can I inflate my tire with the door open?
No, the inflation process will start only once the door is closed.
Do I need to anchor my inflation cage to the floor?
Safety standards vary by region. Verify with your local health and safety organization.
My safety sticker on my inflation cage is scratched or missing. Can I order a new one?
Yes, see our spare parts section.
Do I need an air compressor with my inflation cage?
Yes, the product does not produce compressed air.
What kind of air compressor should I use with this product?
The compressor should
have a stable air supply monitored by an air regulator (maintain a minimum air pressure fluctuation)
be equipped with an air filter to protect against water and oil contained in compressed air.
meet the minimum and maximum air inlet pressure of the inflator.
Can my tank explode by over filling with compressed air?
No, the tank is equipped with a safety valve that will release the excess pressure.
How much time does the battery lasts?
It will last about 500 inflation or deflation cycles.
Can I use another type of chuck?
Yes, other chuck types can be used. However, the chuck type installed must be respected. In this case it is an open chuck. The chuck must also remain in place without someone holding. (clip on chuck, screw on chuck, etc.)
