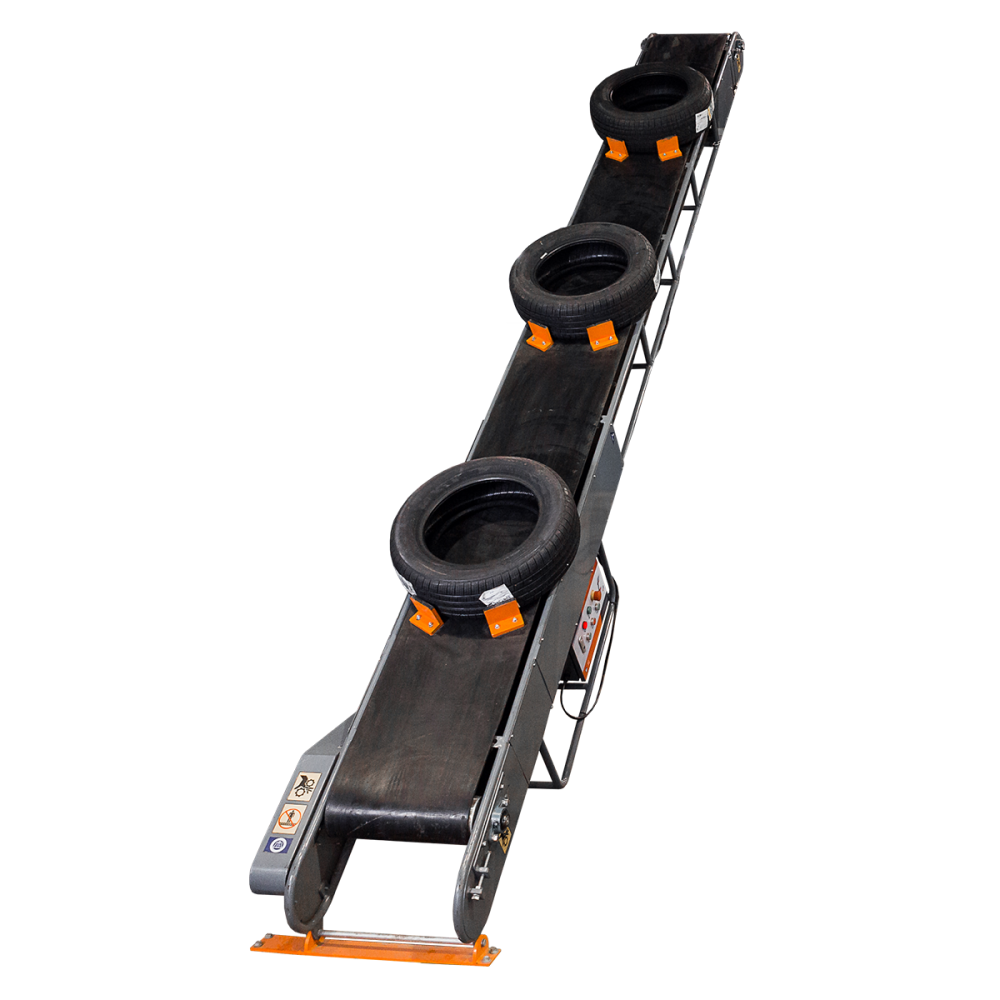

18’ Tire conveyor

Floor to floor tire conveyor 18'
# TC-18

Features and benefits

  • Speed up tire handling up to and down from your mezzanine at a rhythm as fast as 12 tires per minute.
  • Tough enough for all your tire/wheel assemblies — Heavy-duty rubber belt that can support up to 500 lb.
  • Angled PVC cleats for a maximum stability of your passenger car, SUV & light truck tires on the conveyor.
  • Control box at both ends of the tire conveyor — On, Off, Reverse & Emergency stop.
  • Requires no maintenance with its sealed precision ball bearing.

Increase your tire handling productivity with the plug & play tire conveyor. Its raised base, firmly anchored to the ground, provides ergonomic working height and therefore prevents injuries from handling tires, wheels and tire/wheel assemblies. Two control boxes are at arm’s reach at the bottom and top of the conveyor; the latter is supplied with a power cable which allows it to be installed anywhere in your tire warehouse or shop within a radius of 10’/3 m. Powered by a 1-HP motor with magnetic brakes, the floor-to-floor 18’/5.5 m Tire conveyor will maintain your passenger car, SUV & light truck tires perfectly still when stopped.

* Also available in 15', 21' & 24'.


  • Rubber belt - 2 ply (3/8”)
  • PVC cleats
  • Main control box
  • Secondary control box with 10’ power cable
  • 1 HP motor with magnetic brakes
  • User manual
Controls On / Off / Reverse / Emergency stop at each end
Certifications CE, cETLus, UKCA, CSA Z432-16
Warranty 1 year
Product dimensions - LxWxH (inches) 216 x 29 1/2 x 11
Load capacity (lb) 500
Net weight (lb) 825
Speed (m/min) 17.7
Distance between cleats center-to-center (inches) 60
Belt material Rubber
Belt width (inches) 18
Belt thickness (inches) 3/8
Bearing type Sealed precision ball bearing (no maintenance)
Energy type Electricity
Motor (HP) 1.0000
Amp 12
Hertz 60
Phase 1.0000
Volt 115
Watts 750
Materials Steel
Finish Powder coated paint UV resistant - Never loses is luster
Color Grey and orange
Gross weight (lb) 1037
Package dimensions - LxWxH (inches) 225 x 39 x 40



  • Can I change the main control box’s side?
    Yes, there are mounting points for the control box on both sides.
