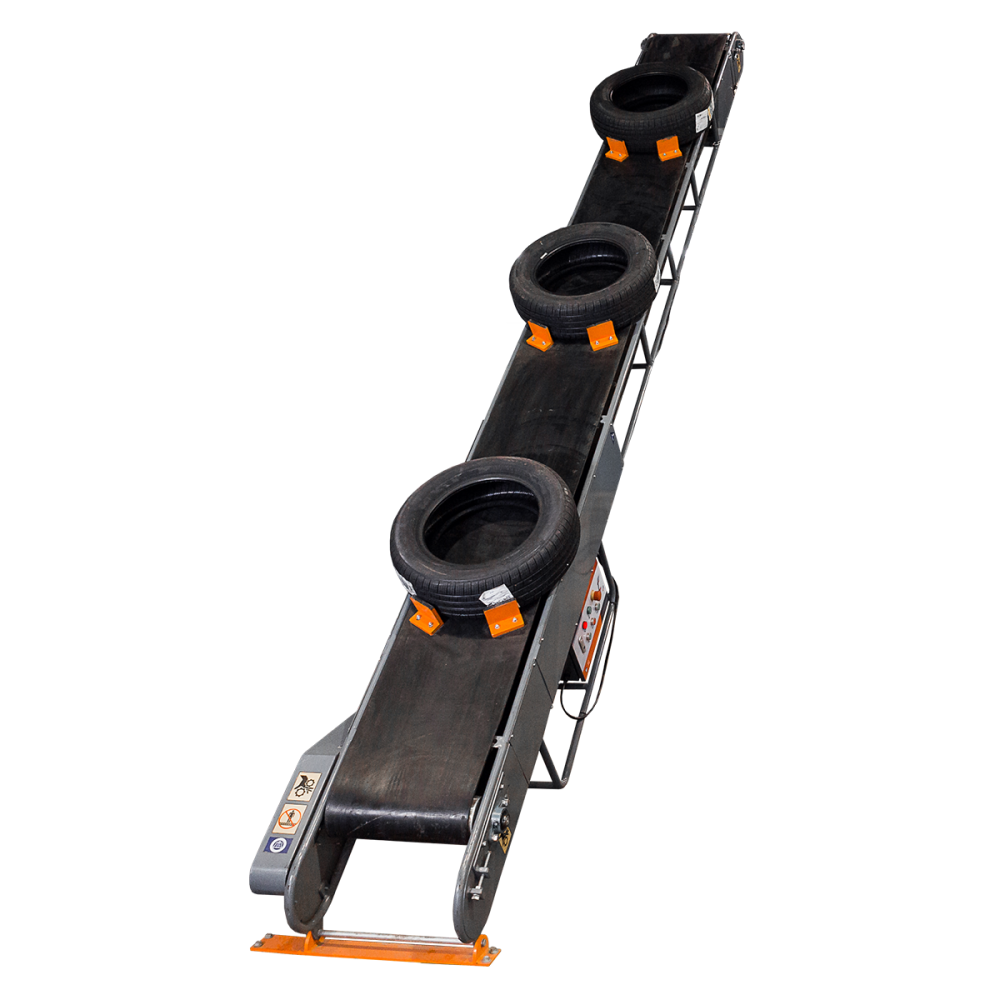

21’ Tire conveyor
Features and benefits
- Speed up tire handling up to and down from your mezzanine at a rhythm as fast as 12 tires per minute.
- Tough enough for all your tire/wheel assemblies—Heavy duty rubber belt that can support up to 500 lb.
- Angled PVC cleats for a maximum stability of your passenger car, SUV & light truck tires on the conveyor.
- Control box at both ends of the tire conveyor — On, Off, Reverse & Emergency stop.
- Requires no maintenance with its sealed precision ball bearing.
Increase your tire handling productivity with the plug & play tire conveyor. Its raised base, firmly anchored to the ground, provides ergonomic working height and therefore prevents injuries from handling tires, wheels and tire/wheel assemblies. Two control boxes are at arms reach at the bottom and top of the conveyor; the latter is supplied with a power cable which allows it to be installed anywhere in your tire warehouse or shop within a radius of 10’. Powered by a 2 HP motor with magnetic brakes, the floor-to-floor 21’ Tire conveyor will maintain your passenger car, SUV & light truck tires perfectly still when stopped.
* Also available in 15’, 18’ & 24’
Specifications
Specifications | |
---|---|
Included |
|
Controls | On / Off / Reverse / Emergency stop at each end |
Certifications | CE, cETLus, UKCA, CSA Z432-16 |
Warranty | 1 year warranty |
Product dimensions - LxWxH (inches) | 250 x 29 1/2 x 11 |
Product dimensions - LxWxH (cm) | 635 x 75 x 28 |
Load capacity (lb) | 500 |
Load capacity (kg) | 230 |
Net weight (kg) | 398 |
Net weight (lb) | 875 |
Speed (m/min) | 17.7 |
Distance between cleats center-to-center (inches) | 60 |
Distance between cleats center-to-center (cm) | 152 |
Belt material | Rubber |
Belt width (inches) | 18 |
Belt width (cm) | 46 |
Belt thickness (inches) | 3/8 |
Belt thickness (cm) | 0.8 |
Bearing type | Sealed precision ball bearing (no maintenance) |
Energy type | Electricity |
Motor (HP) | 2.0000 |
Amp | 12 |
Hertz | 60 |
Phase | 1.0000 |
Volt | 230 |
Watts | 1500 |
Materials | Steel |
Finish | Powder coated paint |
Color | Grey and orange |
Gross weight (kg) | 540 |
Gross weight (lb) | 1190 |
Package dimensions - LxWxH (cm) | 6700 x 955 x 1040 |
Package dimensions - LxWxH (inches) | 264 x 39 x 40 |
Documents
FAQ
-
Can I change the main control box’s side?
Yes, there are mounting points for the control box on both sides.
